Koyo NN3020K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

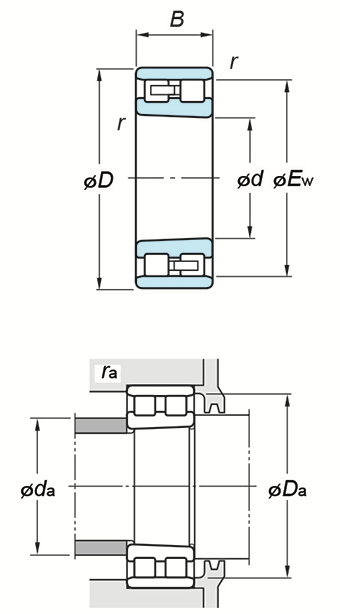

(Boundary dimensions ...etc)
d
100 mm
D
150 mm
B
37 mm
r(min.)
1.5 mm
Fw
- mm
Ew
137 mm
Basic load ratings : Cr
196 kN
Basic load ratings : C0r
265 kN
Fatigue load limit : Cu
33.3 kN
Limiting speeds(Grease lub.)
3900 min-1
Limiting speeds(Oil lub.)
4700 min-1
Mounting dimensions
da(min.)
108 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
142 mm
da(min.)
139 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.21 kg
