Koyo NN3022K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

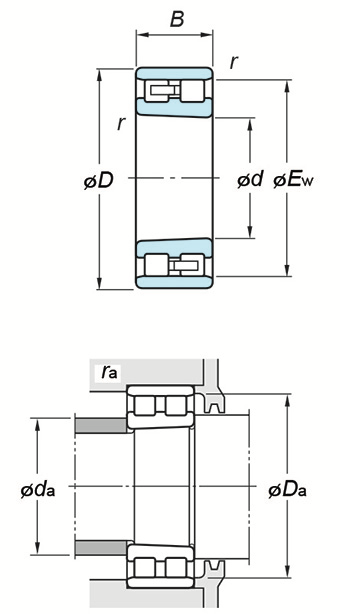

(Boundary dimensions ...etc)
d
110 mm
D
170 mm
B
45 mm
r(min.)
2 mm
Fw
- mm
Ew
155 mm
Basic load ratings : Cr
278 kN
Basic load ratings : C0r
361 kN
Fatigue load limit : Cu
47.9 kN
Limiting speeds(Grease lub.)
3500 min-1
Limiting speeds(Oil lub.)
4200 min-1
Mounting dimensions
da(min.)
119 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
161 mm
da(min.)
157 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.56 kg
