Koyo NN3024K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

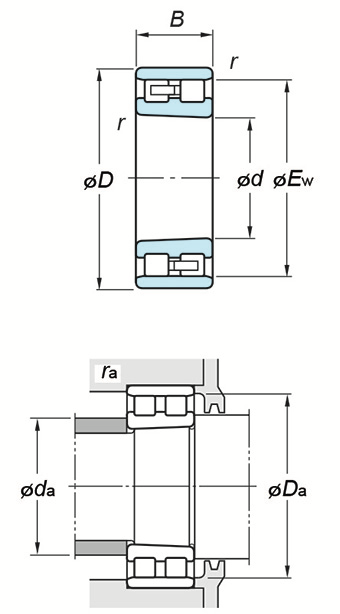

(Boundary dimensions ...etc)
d
120 mm
D
180 mm
B
46 mm
r(min.)
2 mm
Fw
- mm
Ew
165 mm
Basic load ratings : Cr
291 kN
Basic load ratings : C0r
392 kN
Fatigue load limit : Cu
51.1 kN
Limiting speeds(Grease lub.)
3200 min-1
Limiting speeds(Oil lub.)
3900 min-1
Mounting dimensions
da(min.)
129 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
171 mm
da(min.)
167 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
3.87 kg
