Koyo NN3026K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

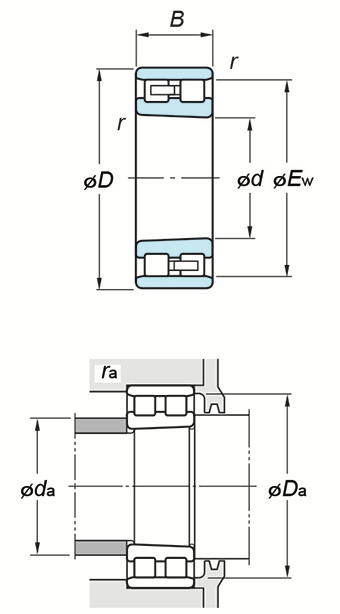

(Boundary dimensions ...etc)
d
130 mm
D
200 mm
B
52 mm
r(min.)
2 mm
Fw
- mm
Ew
182 mm
Basic load ratings : Cr
356 kN
Basic load ratings : C0r
476 kN
Fatigue load limit : Cu
57.7 kN
Limiting speeds(Grease lub.)
2900 min-1
Limiting speeds(Oil lub.)
3500 min-1
Mounting dimensions
da(min.)
139 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
191 mm
da(min.)
183 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
5.76 kg
