Koyo NN3032
(BRAND)：KOYO
(Availability)：In Stock
Specifications

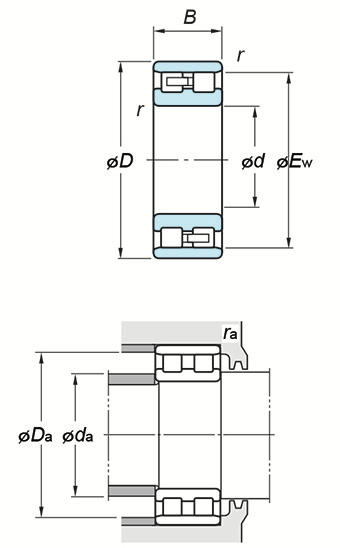

(Boundary dimensions ...etc)
d
160 mm
D
240 mm
B
60 mm
r(min.)
2.1 mm
Fw
- mm
Ew
219 mm
Basic load ratings : Cr
499 kN
Basic load ratings : C0r
695 kN
Fatigue load limit : Cu
79.6 kN
Limiting speeds(Grease lub.)
2400 min-1
Limiting speeds(Oil lub.)
2800 min-1
Mounting dimensions
da(min.)
171 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
229 mm
da(min.)
221 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
9.38 kg
