Koyo NN3034K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

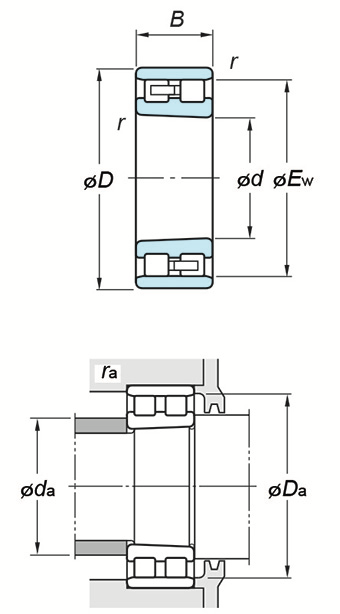

(Boundary dimensions ...etc)
d
170 mm
D
260 mm
B
67 mm
r(min.)
2.1 mm
Fw
- mm
Ew
236 mm
Basic load ratings : Cr
592 kN
Basic load ratings : C0r
824 kN
Fatigue load limit : Cu
105 kN
Limiting speeds(Grease lub.)
2200 min-1
Limiting speeds(Oil lub.)
2600 min-1
Mounting dimensions
da(min.)
181 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
249 mm
da(min.)
238 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
12.4 kg
