Koyo NN3036
(BRAND)：KOYO
(Availability)：In Stock
Specifications

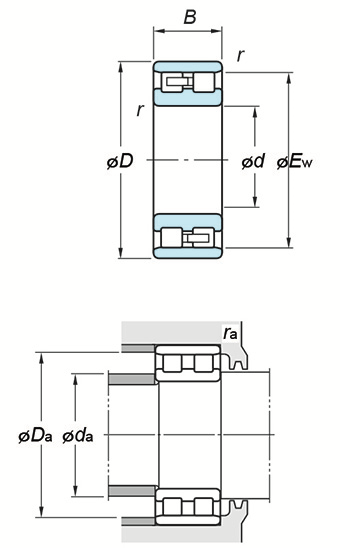

(Boundary dimensions ...etc)
d
180 mm
D
280 mm
B
74 mm
r(min.)
2.1 mm
Fw
- mm
Ew
255 mm
Basic load ratings : Cr
705 kN
Basic load ratings : C0r
958 kN
Fatigue load limit : Cu
118 kN
Limiting speeds(Grease lub.)
2000 min-1
Limiting speeds(Oil lub.)
2400 min-1
Mounting dimensions
da(min.)
191 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
269 mm
da(min.)
257 mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
16.8 kg
