Koyo NN3052
(BRAND)：KOYO
(Availability)：In Stock
Specifications

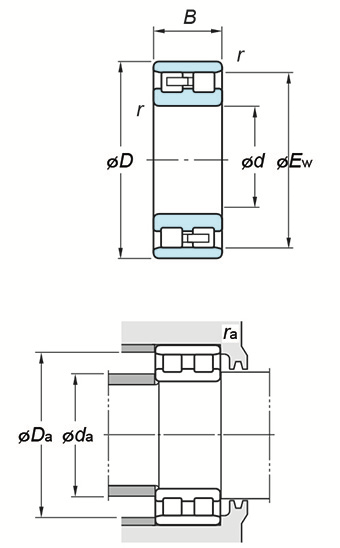

(Boundary dimensions ...etc)
d
260 mm
D
400 mm
B
104 mm
r(min.)
4 mm
Fw
- mm
Ew
364 mm
Basic load ratings : Cr
1290 kN
Basic load ratings : C0r
1830 kN
Fatigue load limit : Cu
204 kN
Limiting speeds(Grease lub.)
1300 min-1
Limiting speeds(Oil lub.)
1500 min-1
Mounting dimensions
da(min.)
276 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
384 mm
da(min.)
367 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
47.4 kg
