Koyo NN3060
(BRAND)：KOYO
(Availability)：In Stock
Specifications

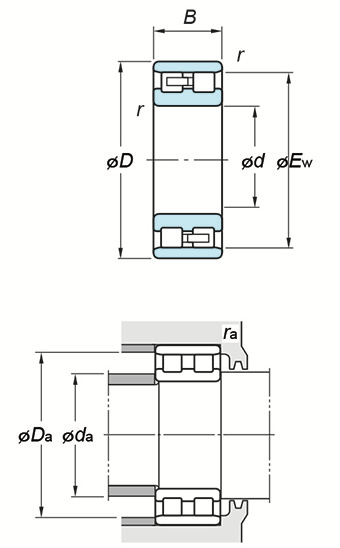

(Boundary dimensions ...etc)
d
300 mm
D
460 mm
B
118 mm
r(min.)
4 mm
Fw
- mm
Ew
418 mm
Basic load ratings : Cr
1610 kN
Basic load ratings : C0r
2460 kN
Fatigue load limit : Cu
266 kN
Limiting speeds(Grease lub.)
1100 min-1
Limiting speeds(Oil lub.)
1300 min-1
Mounting dimensions
da(min.)
316 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
444 mm
da(min.)
421 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
70.8 kg
