Koyo NN3064
(BRAND)：KOYO
(Availability)：In Stock

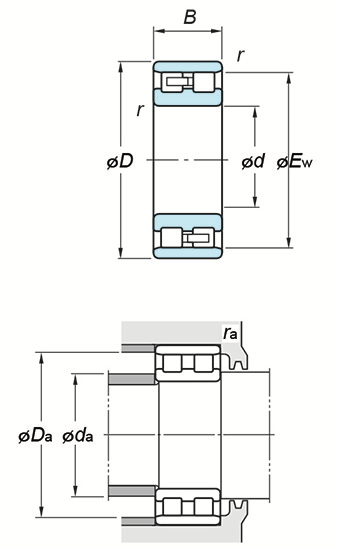

Specifications
(Boundary dimensions ...etc)
d
320 mm
D
480 mm
B
121 mm
r(min.)
4 mm
Fw
- mm
Ew
438 mm
Basic load ratings : Cr
1690 kN
Basic load ratings : C0r
2670 kN
Fatigue load limit : Cu
283 kN
Limiting speeds(Grease lub.)
980 min-1
Limiting speeds(Oil lub.)
1200 min-1
Mounting dimensions
da(min.)
336 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
464 mm
da(min.)
442 mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
76.4 kg
