Koyo NN3076K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

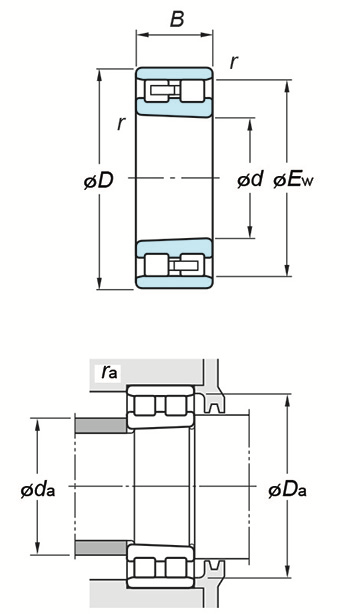

(Boundary dimensions ...etc)
d
380 mm
D
560 mm
B
135 mm
r(min.)
5 mm
Fw
- mm
Ew
510 mm
Basic load ratings : Cr
2050 kN
Basic load ratings : C0r
3350 kN
Fatigue load limit : Cu
337 kN
Limiting speeds(Grease lub.)
780 min-1
Limiting speeds(Oil lub.)
940 min-1
Mounting dimensions
da(min.)
400 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
540 mm
da(min.)
514 mm
ra(max.)
4 mm
Refer.
(Refer.)Mass
109 kg
