Koyo NN3080
(BRAND)：KOYO
(Availability)：In Stock
Specifications

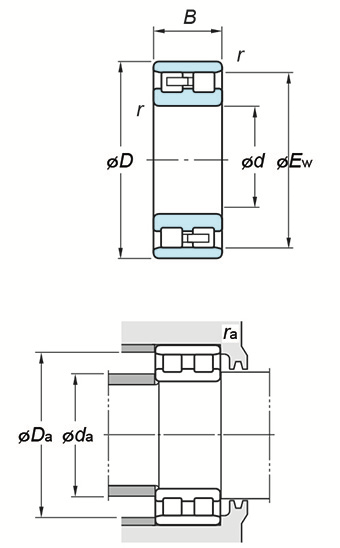

(Boundary dimensions ...etc)
d
400 mm
D
600 mm
B
148 mm
r(min.)
5 mm
Fw
- mm
Ew
548 mm
Basic load ratings : Cr
2550 kN
Basic load ratings : C0r
4140 kN
Fatigue load limit : Cu
414 kN
Limiting speeds(Grease lub.)
700 min-1
Limiting speeds(Oil lub.)
850 min-1
Mounting dimensions
da(min.)
420 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
580 mm
da(min.)
552 mm
ra(max.)
4 mm
Refer.
(Refer.)Mass
146 kg
