Koyo NN3084
(BRAND)：KOYO
(Availability)：In Stock
Specifications

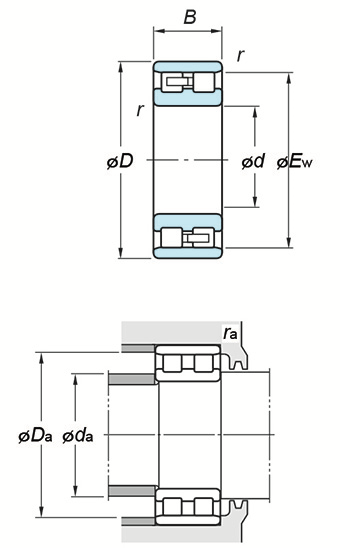

(Boundary dimensions ...etc)
d
420 mm
D
620 mm
B
150 mm
r(min.)
5 mm
Fw
- mm
Ew
570 mm
Basic load ratings : Cr
2900 kN
Basic load ratings : C0r
4570 kN
Fatigue load limit : Cu
449 kN
Limiting speeds(Grease lub.)
670 min-1
Limiting speeds(Oil lub.)
800 min-1
Mounting dimensions
da(min.)
440 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
600 mm
da(min.)
574 mm
ra(max.)
4 mm
Refer.
(Refer.)Mass
154 kg
