Koyo NN3088K
(BRAND)：KOYO
(Availability)：In Stock

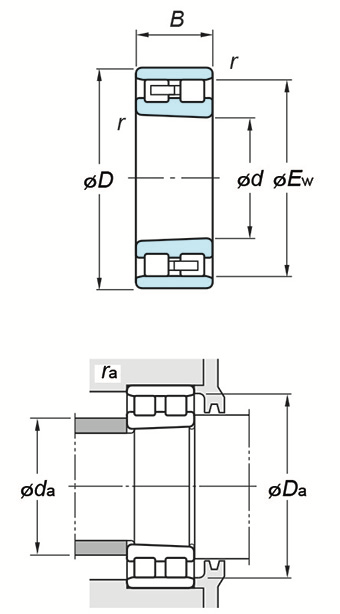

Specifications
(Boundary dimensions ...etc)
d
440 mm
D
650 mm
B
157 mm
r(min.)
6 mm
Fw
- mm
Ew
597 mm
Basic load ratings : Cr
3160 kN
Basic load ratings : C0r
5060 kN
Fatigue load limit : Cu
489 kN
Limiting speeds(Grease lub.)
620 min-1
Limiting speeds(Oil lub.)
740 min-1
Mounting dimensions
da(min.)
464 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
626 mm
da(min.)
602 mm
ra(max.)
5 mm
Refer.
(Refer.)Mass
171 kg
