Koyo NN3092
(BRAND)：KOYO
(Availability)：In Stock
Specifications

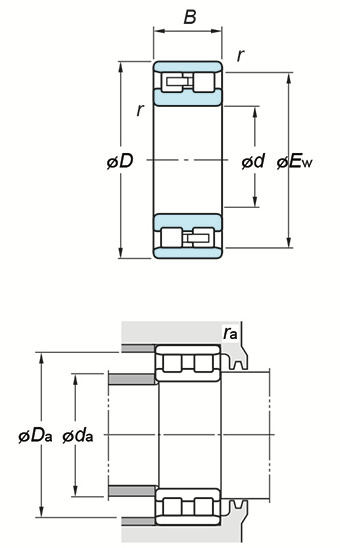

(Boundary dimensions ...etc)
d
460 mm
D
680 mm
B
163 mm
r(min.)
6 mm
Fw
- mm
Ew
627 mm
Basic load ratings : Cr
3390 kN
Basic load ratings : C0r
5480 kN
Fatigue load limit : Cu
521 kN
Limiting speeds(Grease lub.)
570 min-1
Limiting speeds(Oil lub.)
690 min-1
Mounting dimensions
da(min.)
484 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
656 mm
da(min.)
632 mm
ra(max.)
5 mm
Refer.
(Refer.)Mass
201 kg
