Koyo NNU4930
(BRAND)：KOYO
(Availability)：In Stock
Specifications

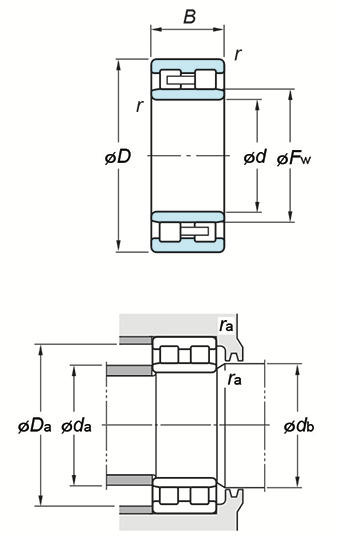

(Boundary dimensions ...etc)
d
150 mm
D
210 mm
B
60 mm
r(min.)
2 mm
Fw
168.5 mm
Ew
- mm
Basic load ratings : Cr
430 kN
Basic load ratings : C0r
692 kN
Fatigue load limit : Cu
80.7 kN
Limiting speeds(Grease lub.)
2600 min-1
Limiting speeds(Oil lub.)
3100 min-1
Mounting dimensions
da(min.)
159 mm
da(max.)
166 mm
db(min.)
171 mm
Da(max.)
201 mm
da(min.)
- mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
6.50 kg
