Koyo NNU4932K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

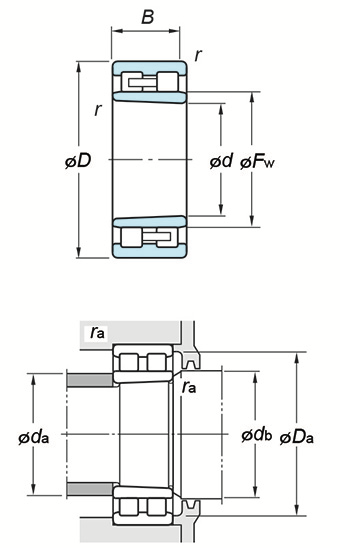

(Boundary dimensions ...etc)
d
160 mm
D
220 mm
B
60 mm
r(min.)
2 mm
Fw
178.5 mm
Ew
- mm
Basic load ratings : Cr
425 kN
Basic load ratings : C0r
695 kN
Fatigue load limit : Cu
79.8 kN
Limiting speeds(Grease lub.)
2500 min-1
Limiting speeds(Oil lub.)
3000 min-1
Mounting dimensions
da(min.)
169 mm
da(max.)
176 mm
db(min.)
182 mm
Da(max.)
211 mm
da(min.)
- mm
ra(max.)
2 mm
Refer.
(Refer.)Mass
6.65 kg
