Koyo NNU4988
(BRAND)：KOYO
(Availability)：In Stock
Specifications

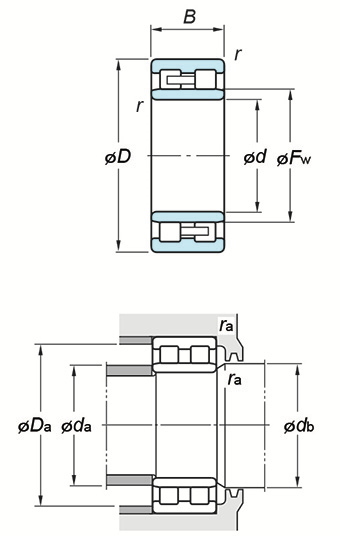

(Boundary dimensions ...etc)
d
440 mm
D
600 mm
B
160 mm
r(min.)
4 mm
Fw
487 mm
Ew
- mm
Basic load ratings : Cr
2060 kN
Basic load ratings : C0r
5000 kN
Fatigue load limit : Cu
477 kN
Limiting speeds(Grease lub.)
660 min-1
Limiting speeds(Oil lub.)
800 min-1
Mounting dimensions
da(min.)
456 mm
da(max.)
483 mm
db(min.)
492 mm
Da(max.)
584 mm
da(min.)
- mm
ra(max.)
3 mm
Refer.
(Refer.)Mass
133 kg
