Koyo NTA-1220
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

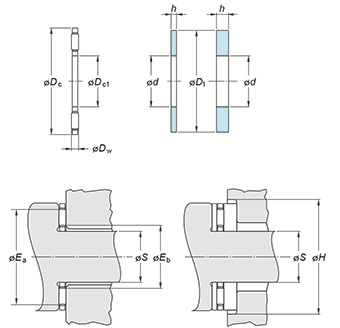

(Boundary dimensions ...etc)
Dc1
19.05 mm
Dc
31.75 mm
Dw
1.984 mm
Eb
21.34 mm
Ea
28.956 mm
Basic load ratings Ca
10.90 kN
Basic load ratings C0a
36.48 kN
Fatigue load limit : Cu
3.40 kN
Limiting speeds
14000 min-1
Washer designation
TRA-1220
Washer dimensions : d
19.05 mm
Washer dimensions : d1
31.75 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
19.05 mm
Piloting dimensions : S(min.)
18.97 mm
Dia. to clear O.D. : H
32.54 mm
(Refer.)Washer mass
0.003 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.004 kg
