Koyo NTA-2233
(BRAND)：KOYO
(Availability)：In Stock

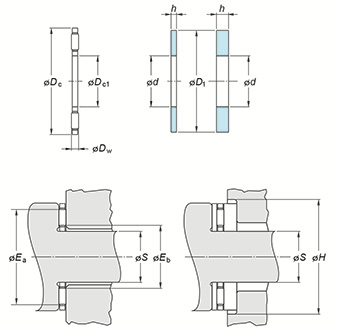

Specifications
(Boundary dimensions ...etc)
Dc1
34.93 mm
Dc
52.375 mm
Dw
1.984 mm
Eb
37.08 mm
Ea
49.53 mm
Basic load ratings Ca
21.35 kN
Basic load ratings C0a
103.20 kN
Fatigue load limit : Cu
10.5 kN
Limiting speeds
8000 min-1
Washer designation
TRA-2233
Washer dimensions : d
34.93 mm
Washer dimensions : d1
52.37 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
34.93 mm
Piloting dimensions : S(min.)
34.85 mm
Dia. to clear O.D. : H
53.19 mm
(Refer.)Washer mass
0.007 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.010 kg
