Koyo NTA-2435
(BRAND)：KOYO
(Availability)：In Stock
Specifications

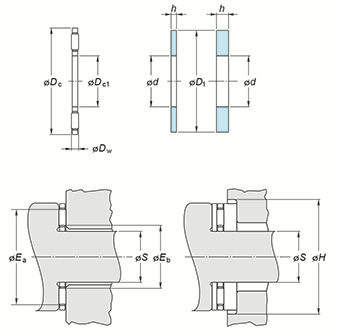

(Boundary dimensions ...etc)
Dc1
38.10 mm
Dc
55.55 mm
Dw
1.984 mm
Eb
40.39 mm
Ea
52.578 mm
Basic load ratings Ca
23.22 kN
Basic load ratings C0a
117.88 kN
Fatigue load limit : Cu
12.0 kN
Limiting speeds
7600 min-1
Washer designation
TRA-2435
Washer dimensions : d
38.10 mm
Washer dimensions : d1
55.55 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
38.10 mm
Piloting dimensions : S(min.)
38.02 mm
Dia. to clear O.D. : H
56.36 mm
(Refer.)Washer mass
0.008 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.011 kg
