Koyo NTA-3244
(BRAND)：KOYO
(Availability)：In Stock
Specifications

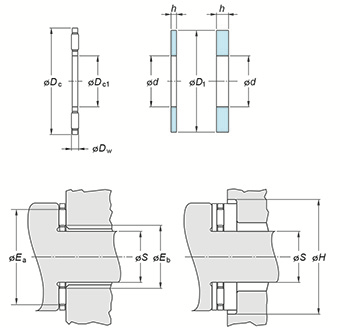

(Boundary dimensions ...etc)
Dc1
50.80 mm
Dc
69.85 mm
Dw
1.984 mm
Eb
53.09 mm
Ea
65.278 mm
Basic load ratings Ca
24.02 kN
Basic load ratings C0a
132.56 kN
Fatigue load limit : Cu
13.5 kN
Limiting speeds
6100 min-1
Washer designation
TRA-3244
Washer dimensions : d
50.80 mm
Washer dimensions : d1
69.85 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
50.80 mm
Piloting dimensions : S(min.)
50.72 mm
Dia. to clear O.D. : H
70.64 mm
(Refer.)Washer mass
0.011 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.015 kg
