Koyo NTA-3648
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

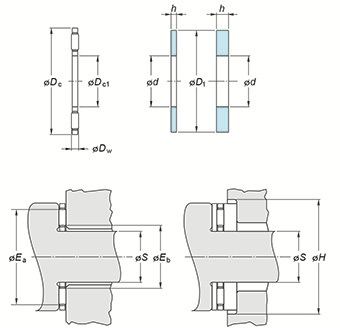

(Boundary dimensions ...etc)
Dc1
57.15 mm
Dc
76.20 mm
Dw
1.984 mm
Eb
59.44 mm
Ea
71.628 mm
Basic load ratings Ca
24.78 kN
Basic load ratings C0a
142.34 kN
Fatigue load limit : Cu
14.6 kN
Limiting speeds
5600 min-1
Washer designation
TRA-3648
Washer dimensions : d
57.15 mm
Washer dimensions : d1
76.20 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
57.15 mm
Piloting dimensions : S(min.)
57.07 mm
Dia. to clear O.D. : H
76.99 mm
(Refer.)Washer mass
0.012 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.017 kg
