Koyo NTA-3650
(BRAND)：KOYO
(Availability)：In Stock
Specifications

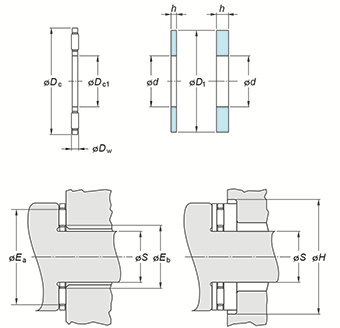

(Boundary dimensions ...etc)
Dc1
57.15 mm
Dc
79.375 mm
Dw
3.175 mm
Eb
59.94 mm
Ea
75.184 mm
Basic load ratings Ca
37.68 kN
Basic load ratings C0a
177.04 kN
Fatigue load limit : Cu
18.6 kN
Limiting speeds
5300 min-1
Washer designation
Washer dimensions : d
mm
Washer dimensions : d1
mm
Washer dimensions : h(max.)
mm
Washer dimensions : h(min.)
mm
Piloting dimensions : S(max.)
57.15 mm
Piloting dimensions : S(min.)
57.07 mm
Dia. to clear O.D. : H
76.99 mm
(Refer.)Washer mass
kg
Mounting dimensions
Refer.
(Refer.)Mass
0.029 kg
