Koyo NTA-4052
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

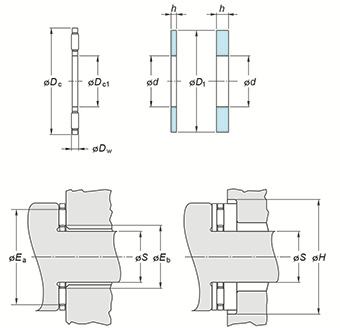

(Boundary dimensions ...etc)
Dc1
63.50 mm
Dc
82.55 mm
Dw
1.984 mm
Eb
65.79 mm
Ea
77.978 mm
Basic load ratings Ca
25.53 kN
Basic load ratings C0a
152.13 kN
Fatigue load limit : Cu
15.6 kN
Limiting speeds
5100 min-1
Washer designation
TRA-4052
Washer dimensions : d
63.50 mm
Washer dimensions : d1
82.55 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
63.50 mm
Piloting dimensions : S(min.)
63.42 mm
Dia. to clear O.D. : H
83.34 mm
(Refer.)Washer mass
0.013 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.019 kg
