Koyo NTA-411
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

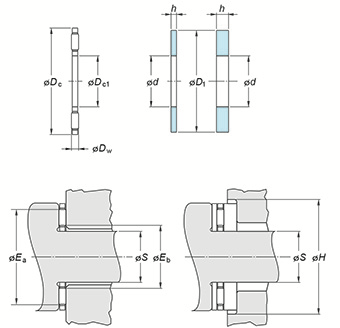

(Boundary dimensions ...etc)
Dc1
6.35 mm
Dc
17.45 mm
Dw
1.984 mm
Eb
8.636 mm
Ea
14.732 mm
Basic load ratings Ca
5.12 kN
Basic load ratings C0a
10.76 kN
Fatigue load limit : Cu
1.05 kN
Limiting speeds
26000 min-1
Washer designation
TRA-411
Washer dimensions : d
6.35 mm
Washer dimensions : d1
17.45 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
6.35 mm
Piloting dimensions : S(min.)
6.27 mm
Dia. to clear O.D. : H
18.26 mm
(Refer.)Washer mass
0.001 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.001 kg
