Koyo NTA-512
(BRAND)：KOYO
(Availability)：In Stock
Specifications

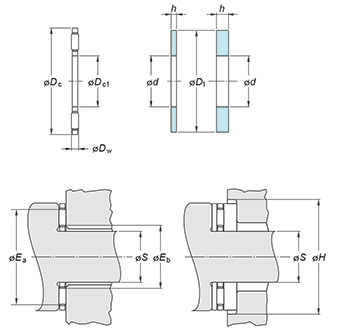

(Boundary dimensions ...etc)
Dc1
7.92 mm
Dc
19.05 mm
Dw
1.984 mm
Eb
10.16 mm
Ea
16.256 mm
Basic load ratings Ca
5.83 kN
Basic load ratings C0a
13.17 kN
Fatigue load limit : Cu
1.30 kN
Limiting speeds
24000 min-1
Washer designation
TRA-512
Washer dimensions : d
7.92 mm
Washer dimensions : d1
19.05 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
7.92 mm
Piloting dimensions : S(min.)
7.85 mm
Dia. to clear O.D. : H
19.84 mm
(Refer.)Washer mass
0.001 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.002 kg
