Koyo NTA-5266
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

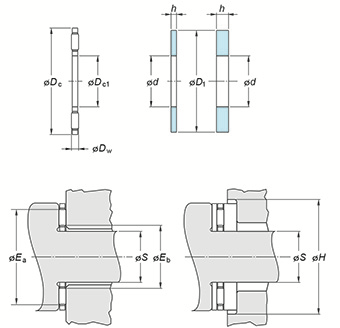

(Boundary dimensions ...etc)
Dc1
82.55 mm
Dc
104.78 mm
Dw
3.175 mm
Eb
85.34 mm
Ea
100.58 mm
Basic load ratings Ca
51.60 kN
Basic load ratings C0a
294.9 kN
Fatigue load limit : Cu
30.9 kN
Limiting speeds
4000 min-1
Washer designation
TRA-5266
Washer dimensions : d
82.55 mm
Washer dimensions : d1
104.78 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
82.55 mm
Piloting dimensions : S(min.)
82.47 mm
Dia. to clear O.D. : H
105.56 mm
(Refer.)Washer mass
0.020 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.042 kg
