Koyo NTA-6074
(BRAND)：KOYO
(Availability)：In Stock
Specifications

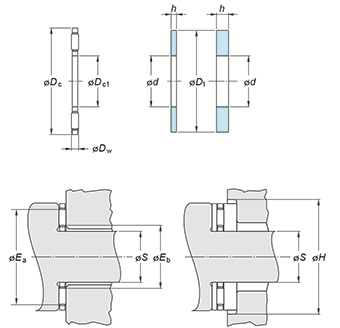

(Boundary dimensions ...etc)
Dc1
95.25 mm
Dc
117.48 mm
Dw
3.175 mm
Eb
98.04 mm
Ea
113.28 mm
Basic load ratings Ca
56.05 kN
Basic load ratings C0a
344.3 kN
Fatigue load limit : Cu
35.5 kN
Limiting speeds
3500 min-1
Washer designation
TRA-6074
Washer dimensions : d
95.25 mm
Washer dimensions : d1
117.48 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
95.25 mm
Piloting dimensions : S(min.)
95.17 mm
Dia. to clear O.D. : H
118.26 mm
(Refer.)Washer mass
0.023 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.050 kg
