Koyo NTA-6681
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

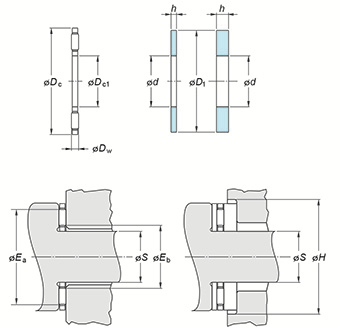

(Boundary dimensions ...etc)
Dc1
104.78 mm
Dc
128.57 mm
Dw
3.175 mm
Eb
107.44 mm
Ea
124.46 mm
Basic load ratings Ca
63.61 kN
Basic load ratings C0a
414.6 kN
Fatigue load limit : Cu
41.3 kN
Limiting speeds
3200 min-1
Washer designation
TRA-6681
Washer dimensions : d
104.78 mm
Washer dimensions : d1
128.57 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
104.78 mm
Piloting dimensions : S(min.)
104.70 mm
Dia. to clear O.D. : H
129.39 mm
(Refer.)Washer mass
0.027 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.062 kg
