Koyo NTA-916
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

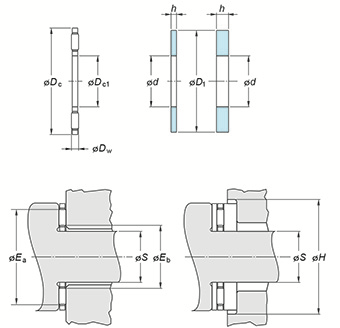

(Boundary dimensions ...etc)
Dc1
14.275 mm
Dc
25.40 mm
Dw
1.984 mm
Eb
16.51 mm
Ea
22.606 mm
Basic load ratings Ca
7.70 kN
Basic load ratings C0a
21.53 kN
Fatigue load limit : Cu
2.10 kN
Limiting speeds
18000 min-1
Washer designation
TRA-916
Washer dimensions : d
14.27 mm
Washer dimensions : d1
25.40 mm
Washer dimensions : h(max.)
0.81 mm
Washer dimensions : h(min.)
0.76 mm
Piloting dimensions : S(max.)
14.27 mm
Piloting dimensions : S(min.)
14.20 mm
Dia. to clear O.D. : H
26.19 mm
(Refer.)Washer mass
0.002 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.003 kg
