Koyo NTC-1427
(BRAND)：KOYO
(Availability)：In Stock
Specifications

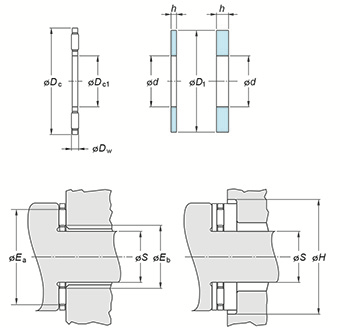

(Boundary dimensions ...etc)
Dc1
22.23 mm
Dc
42.85 mm
Dw
1.984 mm
Eb
25.91 mm
Ea
39.878 mm
Basic load ratings Ca
18.46 kN
Basic load ratings C0a
78.29 kN
Fatigue load limit : Cu
8.05 kN
Limiting speeds
9800 min-1
Washer designation
TRB-1427
Washer dimensions : d
22.23 mm
Washer dimensions : d1
42.86 mm
Washer dimensions : h(max.)
1.60 mm
Washer dimensions : h(min.)
1.52 mm
Piloting dimensions : S(max.)
22.23 mm
Piloting dimensions : S(min.)
22.15 mm
Dia. to clear O.D. : H
43.66 mm
(Refer.)Washer mass
0.013 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.008 kg
