Koyo NU1019
(BRAND)：KOYO
(Availability)：In Stock
Specifications

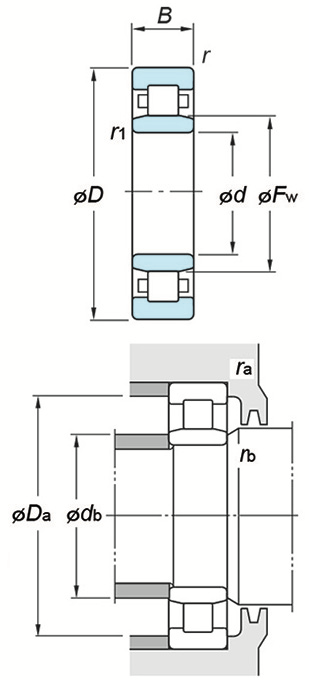

(Boundary dimensions ...etc)
d
95 mm
D
145 mm
B
24 mm
r(min.)
1.5 mm
r1(min.)
1.1 mm
Fw
108 mm
Ew
- mm
Basic load ratings : Cr
110 kN
Basic load ratings : C0r
115 kN
Fatigue load limit : Cu
15.2 kN
Limiting speeds(Grease lub.)
4500 min-1
Limiting speeds(Oil lub.)
5300 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
- mm
db(min.)
101.5 mm
db(max.)
106 mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
137 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1.5 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
1.40 kg
