Koyo NU3206
(BRAND)：KOYO
(Availability)：In Stock
Specifications

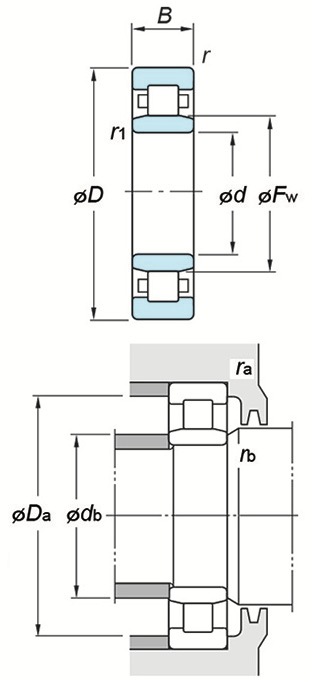

(Boundary dimensions ...etc)
d
30 mm
D
62 mm
B
23.8 mm
r(min.)
1 mm
r1(min.)
1 mm
Fw
38.5 mm
Ew
- mm
Basic load ratings : Cr
53.3 kN
Basic load ratings : C0r
46.4 kN
Fatigue load limit : Cu
5.95 kN
Limiting speeds(Grease lub.)
8700 min-1
Limiting speeds(Oil lub.)
13000 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
- mm
db(min.)
35 mm
db(max.)
37 mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
57 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1 mm
rb(max.)
0.6 mm
Refer.
(Refer.)Mass
0.343 kg
