Koyo NU3352
(BRAND)：KOYO
(Availability)：In Stock
Specifications

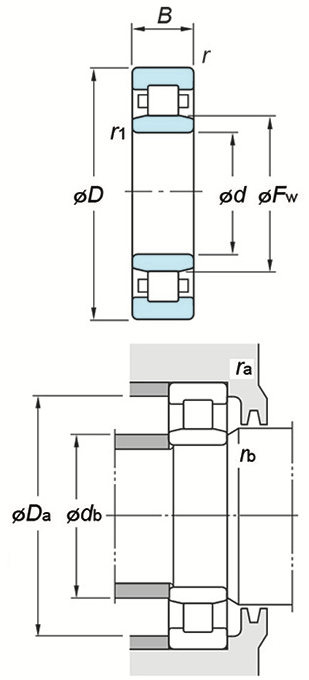

(Boundary dimensions ...etc)
d
260 mm
D
540 mm
B
206 mm
r(min.)
6 mm
r1(min.)
6 mm
Fw
336 mm
Ew
- mm
Basic load ratings : Cr
3670 kN
Basic load ratings : C0r
4790 kN
Fatigue load limit : Cu
473 kN
Limiting speeds(Grease lub.)
790 min-1
Limiting speeds(Oil lub.)
1200 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
- mm
db(min.)
284 mm
db(max.)
330 mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
516 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
5 mm
rb(max.)
5 mm
Refer.
(Refer.)Mass
232 kg
