Koyo NU364
(BRAND)：KOYO
(Availability)：In Stock
Specifications

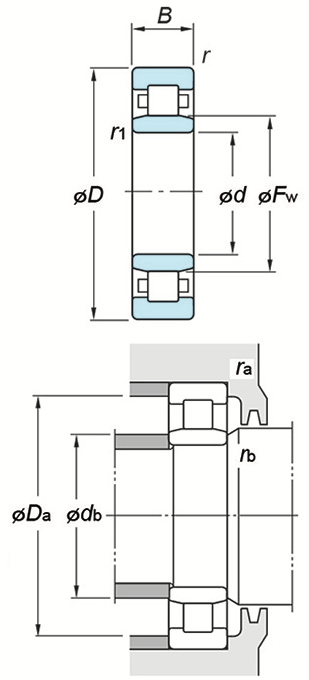

(Boundary dimensions ...etc)
d
320 mm
D
670 mm
B
112 mm
r(min.)
7.5 mm
r1(min.)
7.5 mm
Fw
425 mm
Ew
- mm
Basic load ratings : Cr
2460 kN
Basic load ratings : C0r
2880 kN
Fatigue load limit : Cu
287 kN
Limiting speeds(Grease lub.)
650 min-1
Limiting speeds(Oil lub.)
870 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
- mm
db(min.)
352 mm
db(max.)
419 mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
638 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
6 mm
rb(max.)
6 mm
Refer.
(Refer.)Mass
199 kg
