Koyo RAXZ 510
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

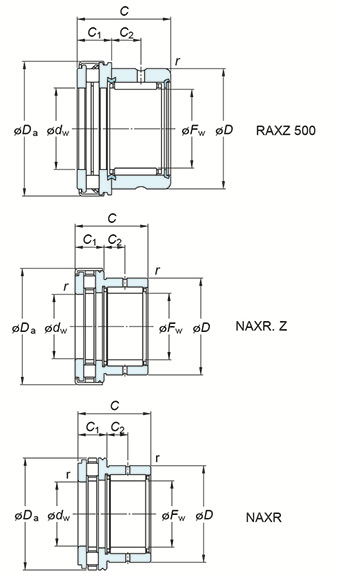

Specifications
(Boundary dimensions ...etc)
Fw
10 mm
D
19 mm
C
21.5 mm
dw(E7)
10 mm
Da
22.4 mm
C1
7.5 mm
C2
6 mm
r(min.)
0.35 mm
Limiting speeds(Oil lub.)
15500 min-1
Basic load ratings : Cr
5.9 kN
Basic load ratings : C0r
7.2 kN
Basic load ratings Ca
8.2 kN
Basic load ratings C0a
17.9 kN
Fatigue load limit : Cu(Radial)
1.15 kN
Fatigue load limit : Cu(Thrust)
1.85 kN
Used with inner ring No.
IM 7 10 16 P
Mounting dimensions
Refer.
(Refer.)Mass
0.026 kg
