Koyo RAXZ 512
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

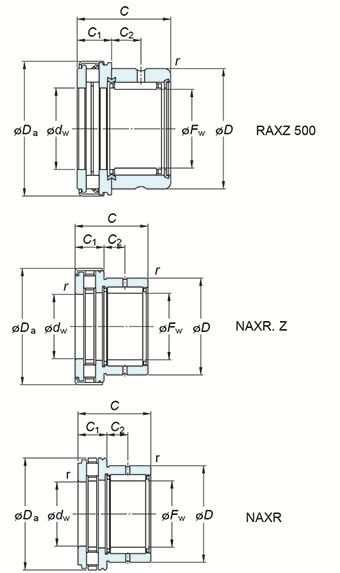

(Boundary dimensions ...etc)
Fw
12 mm
D
21 mm
C
22 mm
dw(E7)
12 mm
Da
26.4 mm
C1
8 mm
C2
6 mm
r(min.)
0.35 mm
Limiting speeds(Oil lub.)
13000 min-1
Basic load ratings : Cr
6.8 kN
Basic load ratings : C0r
9.0 kN
Basic load ratings Ca
12.7 kN
Basic load ratings C0a
29.5 kN
Fatigue load limit : Cu(Radial)
1.30 kN
Fatigue load limit : Cu(Thrust)
3.10 kN
Used with inner ring No.
IM 9 12 16 P
Mounting dimensions
Refer.
(Refer.)Mass
0.033 kg
