Koyo RAXZ 520
(BRAND)：KOYO
(Availability)：In Stock
Specifications

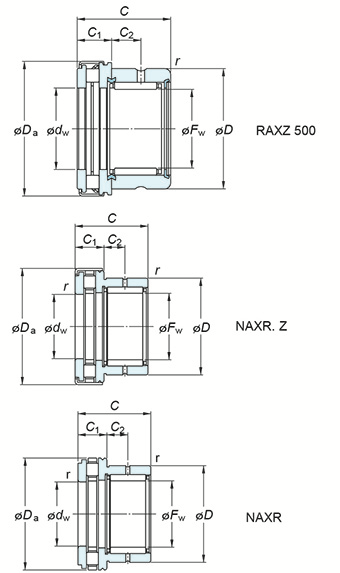

(Boundary dimensions ...etc)
Fw
20 mm
D
30 mm
C
29 mm
dw(E7)
20 mm
Da
35.4 mm
C1
11 mm
C2
9 mm
r(min.)
0.85 mm
Limiting speeds(Oil lub.)
9000 min-1
Basic load ratings : Cr
14.8 kN
Basic load ratings : C0r
23.7 kN
Basic load ratings Ca
22.0 kN
Basic load ratings C0a
54.0 kN
Fatigue load limit : Cu(Radial)
3.55 kN
Fatigue load limit : Cu(Thrust)
5.55 kN
Used with inner ring No.
IM 15 20 20 P
Mounting dimensions
Refer.
(Refer.)Mass
0.070 kg
