Koyo RAXZ 525
(BRAND)：KOYO
(Availability)：In Stock
Specifications

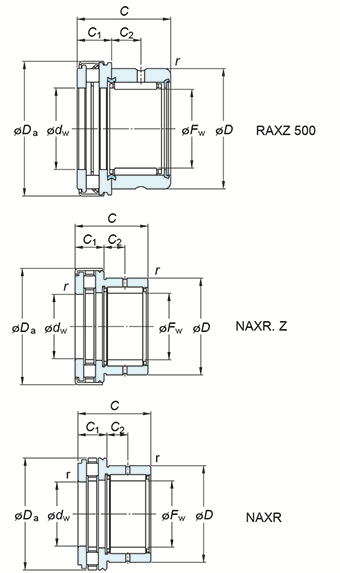

(Boundary dimensions ...etc)
Fw
25 mm
D
37 mm
C
29 mm
dw(E7)
25 mm
Da
43 mm
C1
11 mm
C2
9 mm
r(min.)
0.85 mm
Limiting speeds(Oil lub.)
7500 min-1
Basic load ratings : Cr
15.1 kN
Basic load ratings : C0r
26.2 kN
Basic load ratings Ca
25.5 kN
Basic load ratings C0a
70.0 kN
Fatigue load limit : Cu(Radial)
4.25 kN
Fatigue load limit : Cu(Thrust)
7.15 kN
Used with inner ring No.
IM 20 25 20 P
Mounting dimensions
Refer.
(Refer.)Mass
0.105 kg
