Koyo RAXZ 530
(BRAND)：KOYO
(Availability)：In Stock
Specifications

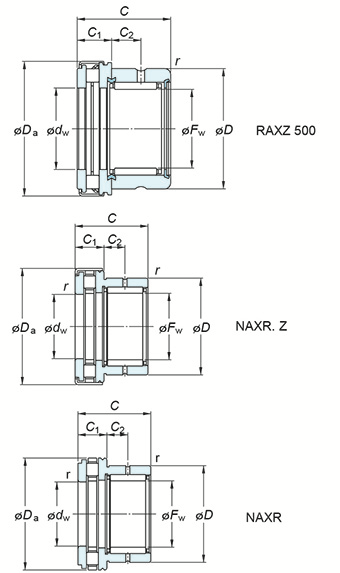

(Boundary dimensions ...etc)
Fw
30 mm
D
42 mm
C
29 mm
dw(E7)
30 mm
Da
48 mm
C1
11 mm
C2
9 mm
r(min.)
0.85 mm
Limiting speeds(Oil lub.)
6500 min-1
Basic load ratings : Cr
20.2 kN
Basic load ratings : C0r
34.6 kN
Basic load ratings Ca
26.5 kN
Basic load ratings C0a
77.0 kN
Fatigue load limit : Cu(Radial)
5.25 kN
Fatigue load limit : Cu(Thrust)
7.90 kN
Used with inner ring No.
IM 25 30 20 P
Mounting dimensions
Refer.
(Refer.)Mass
0.118 kg
