Koyo RAXZ 535
(BRAND)：KOYO
(Availability)：In Stock
Specifications

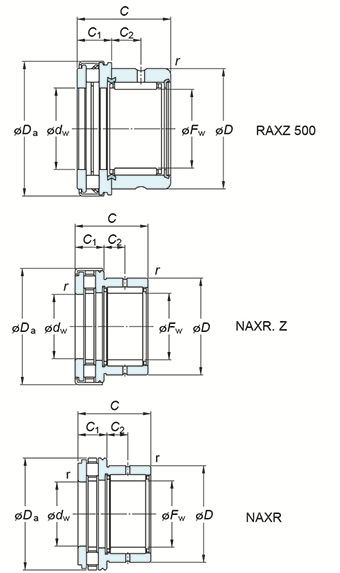

(Boundary dimensions ...etc)
Fw
35 mm
D
47 mm
C
30 mm
dw(E7)
35 mm
Da
54 mm
C1
12 mm
C2
9 mm
r(min.)
0.85 mm
Limiting speeds(Oil lub.)
5500 min-1
Basic load ratings : Cr
22.1 kN
Basic load ratings : C0r
40.8 kN
Basic load ratings Ca
33.8 kN
Basic load ratings C0a
94.0 kN
Fatigue load limit : Cu(Radial)
6.15 kN
Fatigue load limit : Cu(Thrust)
8.80 kN
Used with inner ring No.
IM 30 35 20 P
Mounting dimensions
Refer.
(Refer.)Mass
0.146 kg
