Koyo RAXZ 540
(BRAND)：KOYO
(Availability)：In Stock
Specifications

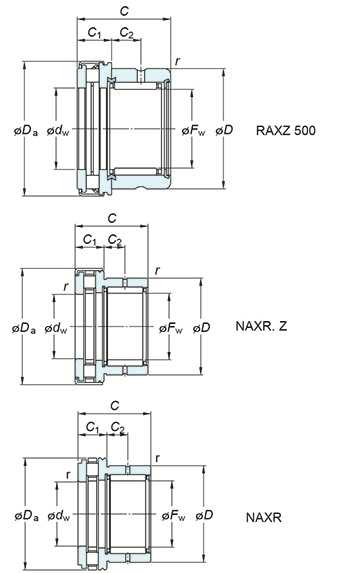

(Boundary dimensions ...etc)
Fw
40 mm
D
52 mm
C
31 mm
dw(E7)
40 mm
Da
61 mm
C1
13 mm
C2
9 mm
r(min.)
0.85 mm
Limiting speeds(Oil lub.)
5000 min-1
Basic load ratings : Cr
23.8 kN
Basic load ratings : C0r
47.0 kN
Basic load ratings Ca
46.0 kN
Basic load ratings C0a
129.0 kN
Fatigue load limit : Cu(Radial)
7.00 kN
Fatigue load limit : Cu(Thrust)
5.95 kN
Used with inner ring No.
IM 35 40 20 P
Mounting dimensions
Refer.
(Refer.)Mass
0.174 kg
