Koyo RAXZ 545

(BRAND):KOYO
(Availability):In Stock

Detailed data of

RAXZ 545

Specifications

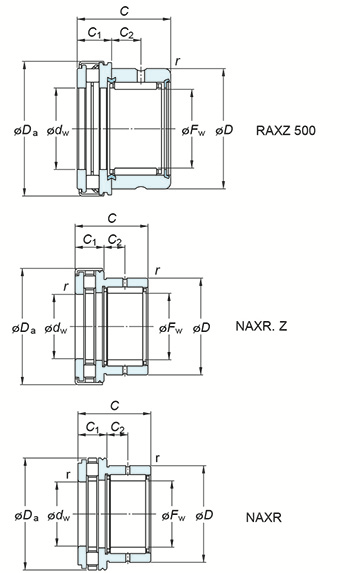

(Boundary dimensions ...etc)

Fw 45 mm
D 58 mm
C 31 mm
dw(E7) 45 mm
Da 66 mm
C1 13 mm
C2 9 mm
r(min.) 0.85 mm
Limiting speeds(Oil lub.) 4500 min-1
Basic load ratings : Cr 24.9 kN
Basic load ratings : C0r 51.8 kN
Basic load ratings Ca 49.0 kN
Basic load ratings C0a 143.0 kN
Fatigue load limit : Cu(Radial) 7.90 kN
Fatigue load limit : Cu(Thrust) 6.60 kN
Used with inner ring No. IM 40 45 20 P

Mounting dimensions

Refer.

(Refer.)Mass 0.206 kg
