Koyo RAXZ 550

(BRAND):KOYO
(Availability):In Stock

Detailed data of

RAXZ 550

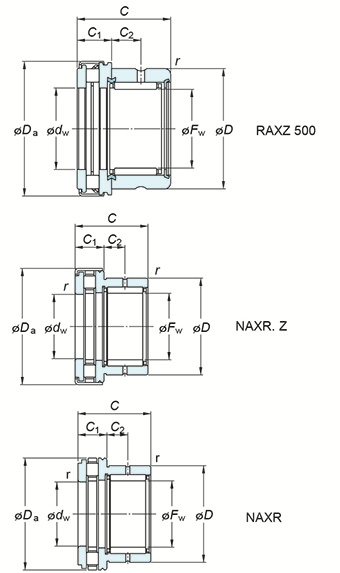

Specifications
(Boundary dimensions ...etc)

Fw 50 mm
D 62 mm
C 34 mm
dw(E7) 50 mm
Da 71 mm
C1 13 mm
C2 11 mm
r(min.) 1.3 mm
Limiting speeds(Oil lub.) 4000 min-1
Basic load ratings : Cr 30.2 kN
Basic load ratings : C0r 68.5 kN
Basic load ratings Ca 51.0 kN
Basic load ratings C0a 157.0 kN
Fatigue load limit : Cu(Radial) 9.60 kN
Fatigue load limit : Cu(Thrust) 7.25 kN
Used with inner ring No. IM 45 50 25 P

Mounting dimensions

Refer.

(Refer.)Mass 0.232 kg
