Koyo RAXZ 560
(BRAND)：KOYO
(Availability)：In Stock
Specifications

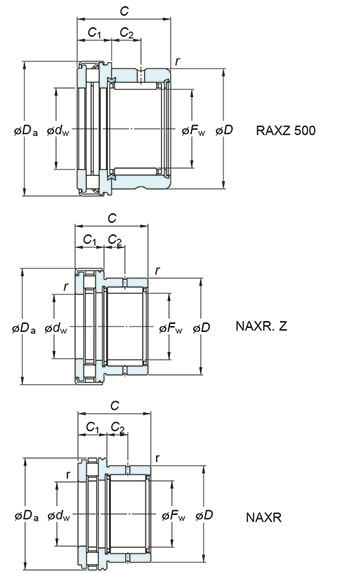

(Boundary dimensions ...etc)
Fw
60 mm
D
72 mm
C
36 mm
dw(E7)
60 mm
Da
86 mm
C1
15 mm
C2
11 mm
r(min.)
1.3 mm
Limiting speeds(Oil lub.)
3500 min-1
Basic load ratings : Cr
31.9 kN
Basic load ratings : C0r
78.1 kN
Basic load ratings Ca
71.0 kN
Basic load ratings C0a
255.0 kN
Fatigue load limit : Cu(Radial)
11.5 kN
Fatigue load limit : Cu(Thrust)
18.4 kN
Used with inner ring No.
IM 55 60 25 P
Mounting dimensions
Refer.
(Refer.)Mass
0.327 kg
