Koyo RAXZ 570
(BRAND)：KOYO
(Availability)：In Stock
Specifications

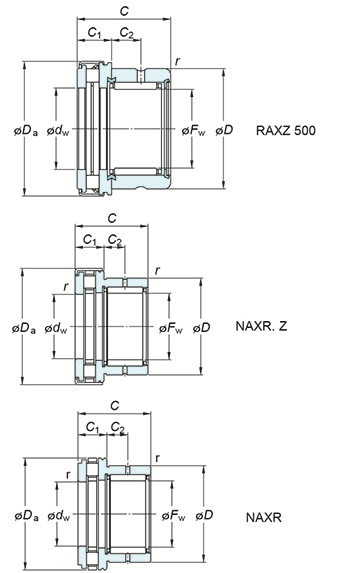

(Boundary dimensions ...etc)
Fw
70 mm
D
85 mm
C
36 mm
dw(E7)
70 mm
Da
96 mm
C1
15 mm
C2
11 mm
r(min.)
1.3 mm
Limiting speeds(Oil lub.)
3000 min-1
Basic load ratings : Cr
36.1 kN
Basic load ratings : C0r
84.7 kN
Basic load ratings Ca
77.0 kN
Basic load ratings C0a
295.0 kN
Fatigue load limit : Cu(Radial)
13.3 kN
Fatigue load limit : Cu(Thrust)
21.2 kN
Used with inner ring No.
IM 60 70 25 P
Mounting dimensions
Refer.
(Refer.)Mass
0.435 kg
