Koyo SBPFL201
(BRAND)：KOYO
(Availability)：In Stock
Specifications

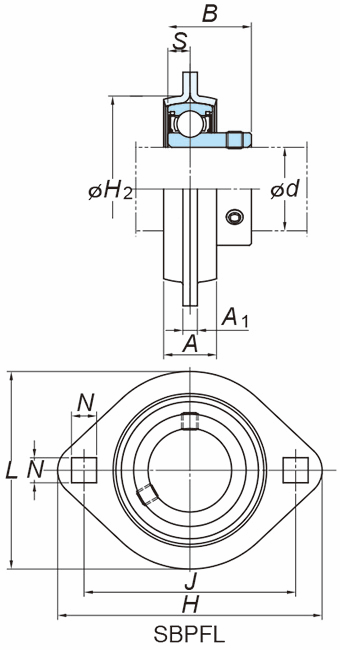

(Boundary dimensions ...etc)
d
12 mm
H
81 mm
L
59 mm
A
14 mm
A1
4 mm
J
63.5 mm
N
7.1 mm
H1
- mm
H2
49 mm
S
6 mm
B
22 mm
B1
mm
Bolt size
M6
Basic load ratings : Cr
9.55 kN
Basic load ratings : C0r
4.80 kN
Fatigue load limit : Cu
0.218 kN
factor : f0
13.2
(Refer.)Unit mass - SBPP
0.19 kg
(Refer.)Unit mass - SAPP
kg
