Koyo SBPP205
(BRAND)：KOYO
(Availability)：In Stock
Specifications

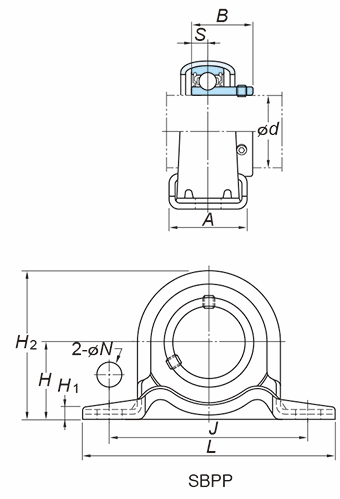

(Boundary dimensions ...etc)
d
25 mm
H
28.6 mm
L
108 mm
A
32 mm
A1
- mm
J
86 mm
N
11.5 mm
H1
4 mm
H2
56.6 mm
S
7.5 mm
B
27 mm
B1
mm
Bolt size
M10
Basic load ratings : Cr
14.0 kN
Basic load ratings : C0r
7.85 kN
Fatigue load limit : Cu
0.357 kN
factor : f0
13.9
(Refer.)Unit mass - SBPP
0.28 kg
(Refer.)Unit mass - SAPP
kg
