Koyo SBPP206
(BRAND)：KOYO
(Availability)：In Stock
Specifications

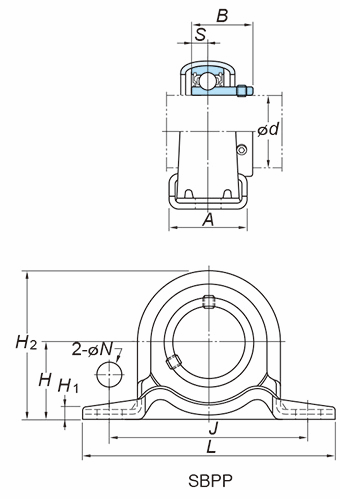

(Boundary dimensions ...etc)
d
30 mm
H
33.3 mm
L
117 mm
A
38 mm
A1
- mm
J
95 mm
N
11.5 mm
H1
4 mm
H2
66.3 mm
S
8 mm
B
30 mm
B1
mm
Bolt size
M10
Basic load ratings : Cr
19.5 kN
Basic load ratings : C0r
11.3 kN
Fatigue load limit : Cu
0.514 kN
factor : f0
13.9
(Refer.)Unit mass - SBPP
0.47 kg
(Refer.)Unit mass - SAPP
kg
